10.4寸1024*768全视角、宽温高亮
-
品牌：TOPVIEW（拓浦）
型号：
规格：1024×768
- 咨询热线：李先生(Jacky)：139 2362 5299 明先生(Mike)：139 2387 9327 李先生(Leo)： 139 1709 9753
-
产品详情
| Item | Specification |
| LCD Brand | TOPVIEW |

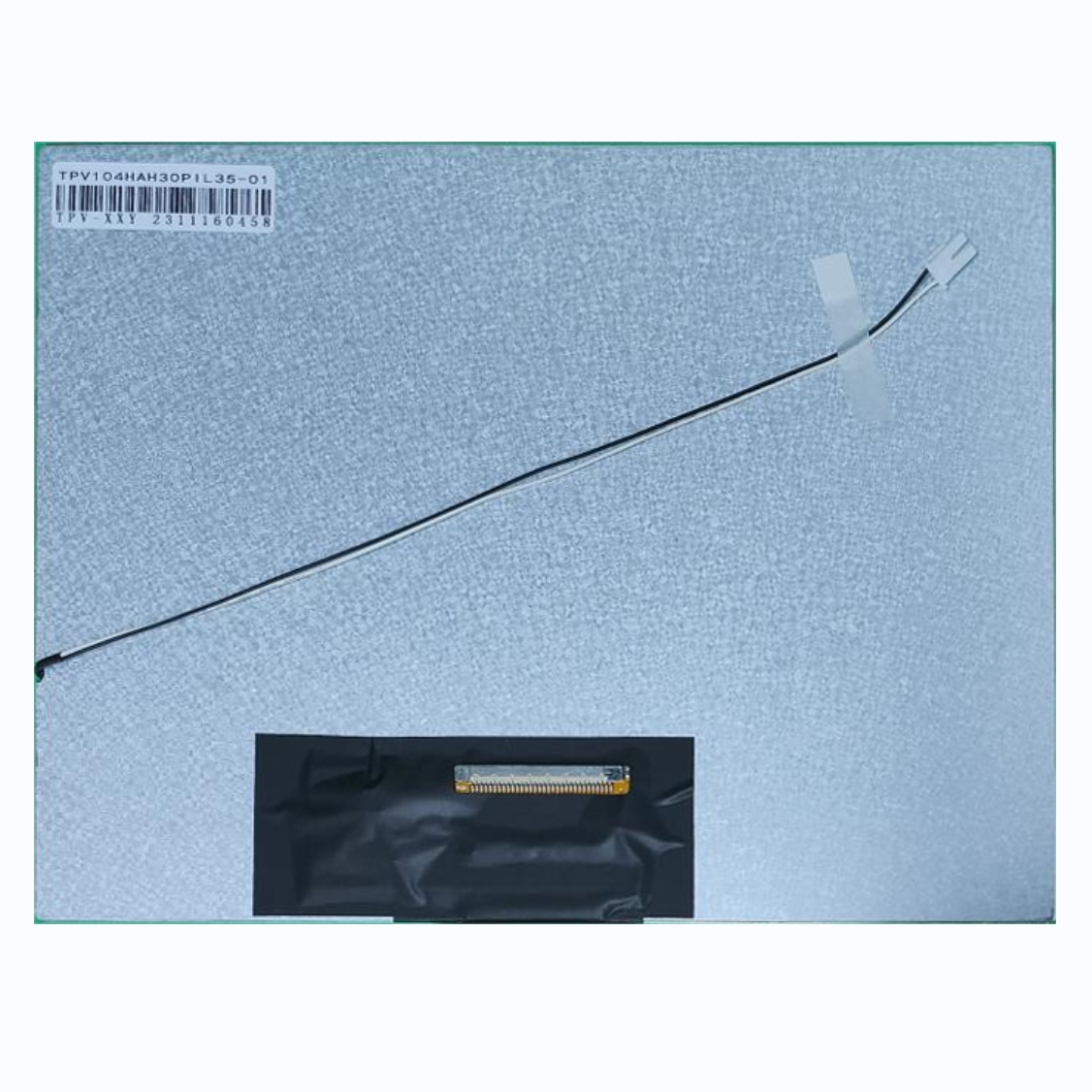

| Model | TPV104HAH30PIL35-01 |
| Display Size | 10.4 inch |
| Aspect Ratio | 4:3 (H:V) |
| Resolution | 1024(H)x768 (V) |
| Active Area | 211.2(H) x 158.4(V)mm |
| Pixel Pitch | 0.20625(H) x 0.20625(V)mm |
| Outline Dimension | 228.4(H) x175.4(V) x6.0(D)mm |
| Support color | 16.2M |
| NTSC | 70% |
| Display mode | Normally black(IPS) |
| View angle | L/R/U/D 85/85/85/85 |
| Brightness | 350-1000 cd/㎡ |
| Contrast Ratio | 900：1 |
| Interface | LVDS(6/8-bit) , 30 pins Connector |
| Backlight | 30k hours, with LED driver |
| Operating temp. | -20℃ ~ +70℃ |
| Storage temp. | -30℃ ~ +80℃ |
-
