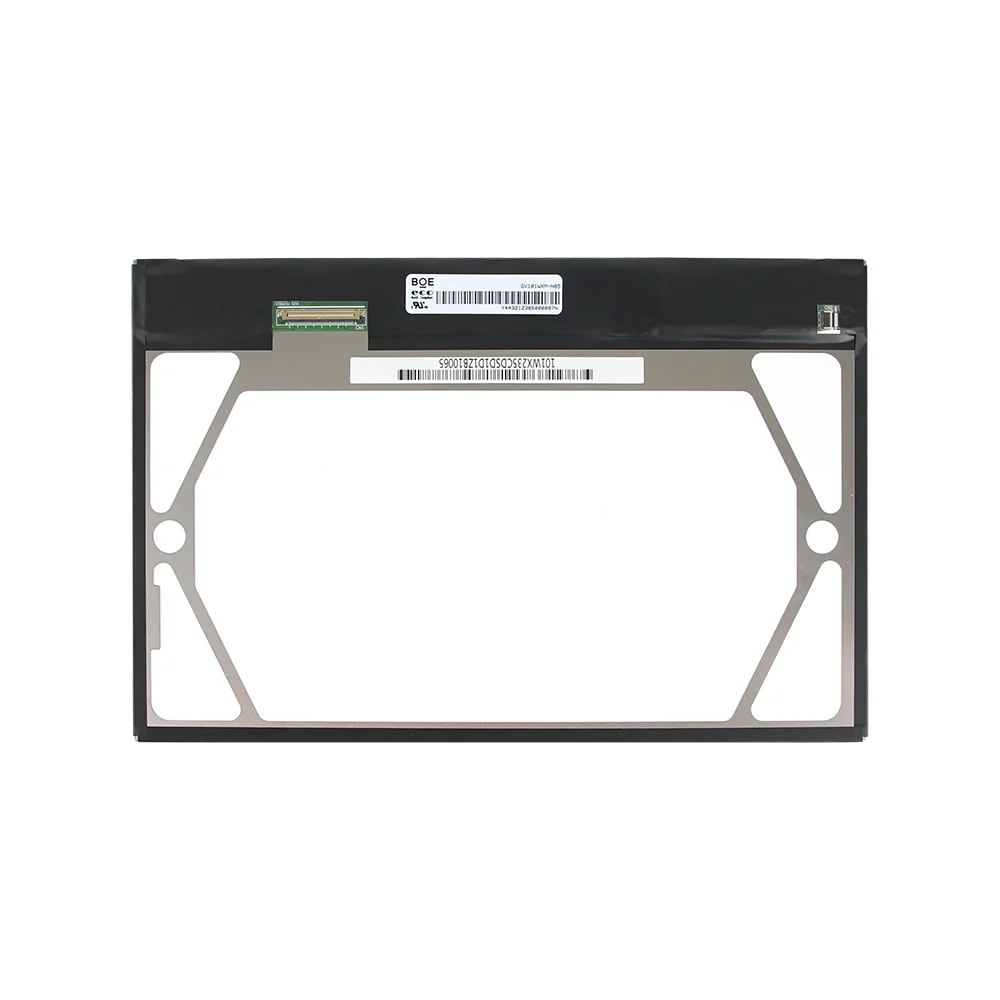

产品详情
| Item | Specification |
| Brand Name | BOE |
| Display Size | 10.1 inch |
| Model | GV101WXM-N85 |
| Aspect Ratio | 16:10 (H:V) |
| Resolution | 1280(H) x 800 (V) |
| Active Area | 216.96(H) x 135.6(V)mm |
| Pixel Pitch | 0.0565(H) x 0.1695(V)mm |
| Outline Dimension | 228.2(H) x148.85(V) x 2.8(D)mm(W/O PCBA) 228.2(H) x148.85(V) x 4.9(D)mm(W/I PCBA) |
| Support color | 16.7M |
| Color Gamut | 50% |
| Display mode | Normally black(IPS) |
| View angle | L/R/U/D 85/85/85/85 |
| Brightness | 430 cd/㎡ |
| Contrast Ratio | 800：1 |
| Interface | LVDS(6-bits) , 40 pins Connector |
| Backlight | 34k hours, with LED driver |
| Operating temp. | -20℃ ~ +70℃ |
| Storage temp. | -30℃ ~ +80℃ |
-
